Introduction

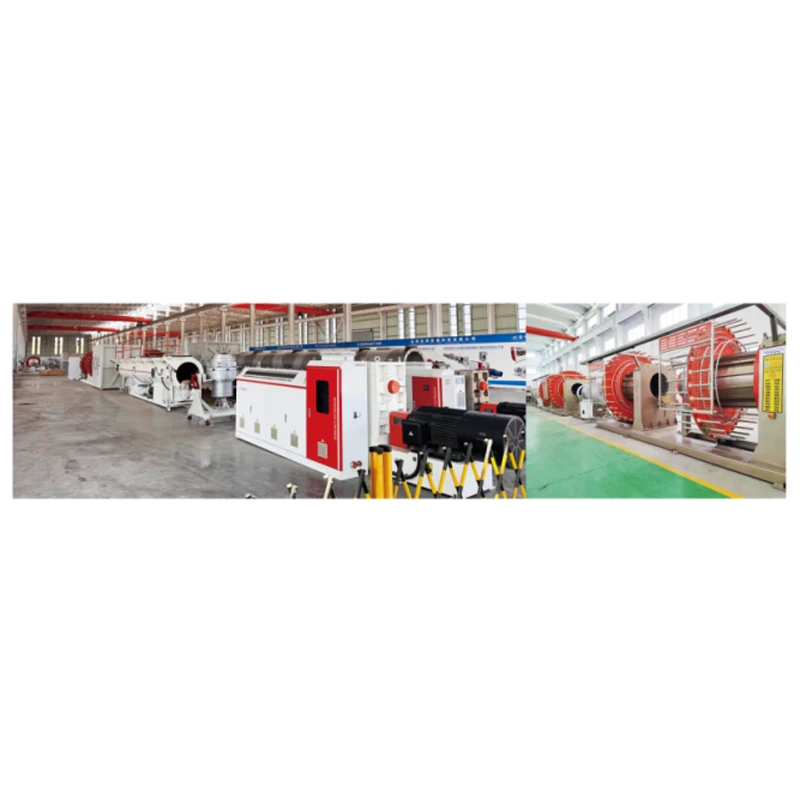

The High-Speed Steel Wire Mesh Skeleton Reinforced Polyethylene Composite Pipe Production Line represents a cutting-edge solution in the manufacturing of advanced composite pipes. This production line integrates modern automation, precision engineering, and high-performance materials to deliver durable and efficient pipe systems. Designed for industrial and municipal applications, it combines the strengths of steel wire reinforcement with the versatility of polyethylene, ensuring optimal performance in diverse environments.

Product Highlights

The production line is engineered with several key features that set it apart in the industry:

1. Advanced Automation and Design

The entire production line is controlled by a PLC computer system, ensuring high automation, safety, and user-friendly operation. This integration allows for stable, high-speed production without the need to reduce speed during steel wire replacement, significantly lowering the rejection rate. The humanized design ensures ease of operation, while the low noise and energy-efficient operation make it ideal for continuous industrial use.

2. High-Quality Components

The main engine utilizes international first-line brand electrical appliances, ensuring reliability and longevity. The dies and screws are made from 40Cr alloy structural steel, while the ceramic heating rings are wrapped with an insulation layer for rapid and uniform heating. The gear box is equipped with a condenser, ensuring a stable and fast discharging speed.

3. Precision Engineering

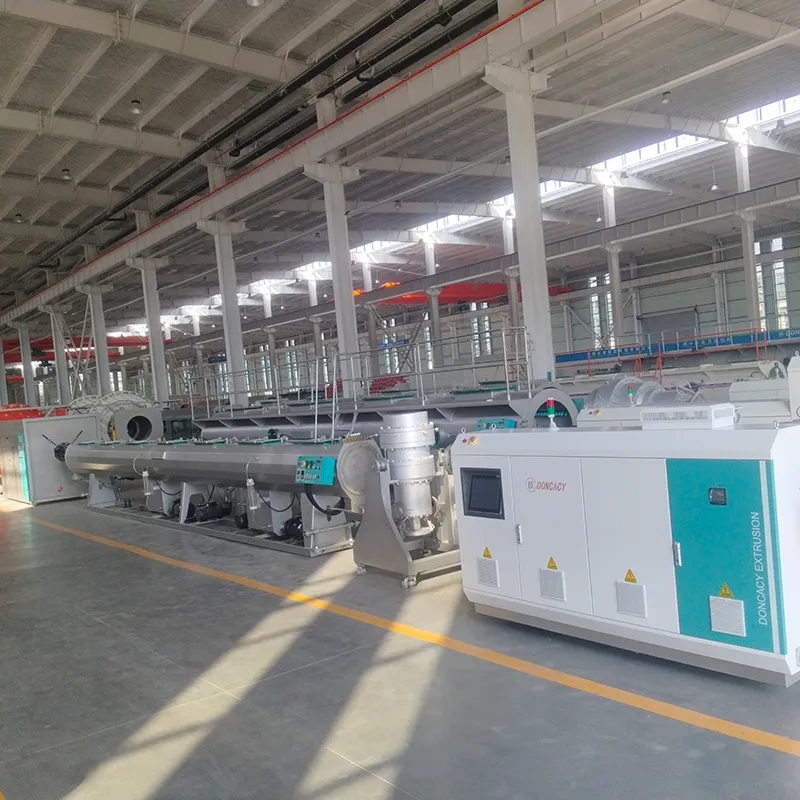

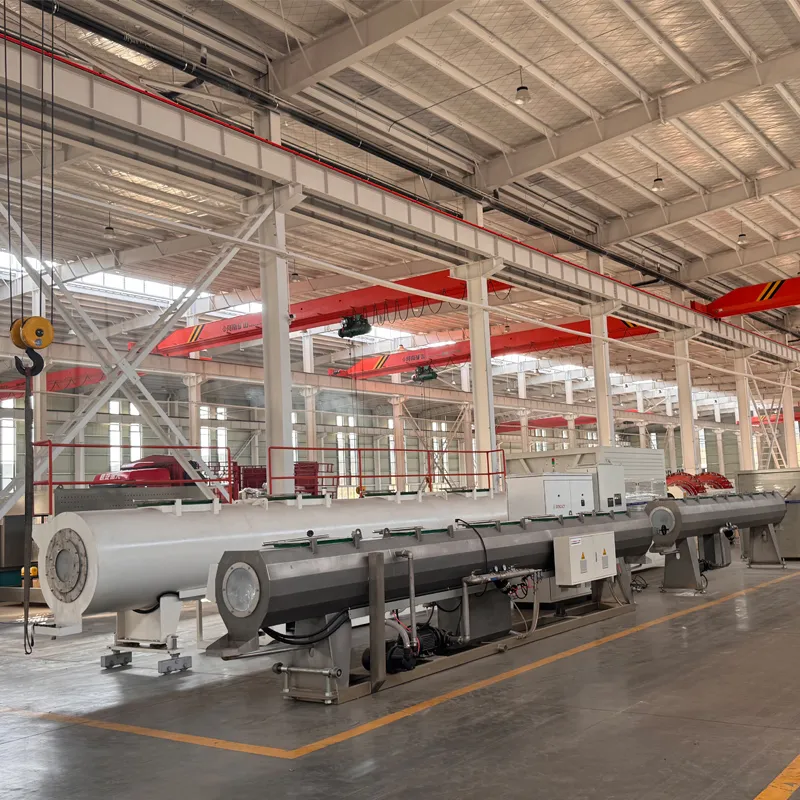

The vacuum box is constructed from 304 stainless steel, bent and welded in one piece. All internal components are laser-cut, and the spray port is controlled by an intensive frequency converter. This design ensures constant temperature control of water temperature, low noise, and efficient cooling. The disc-type 304 ball valve allows for electrically adjustable crossbars, enhancing operational flexibility.

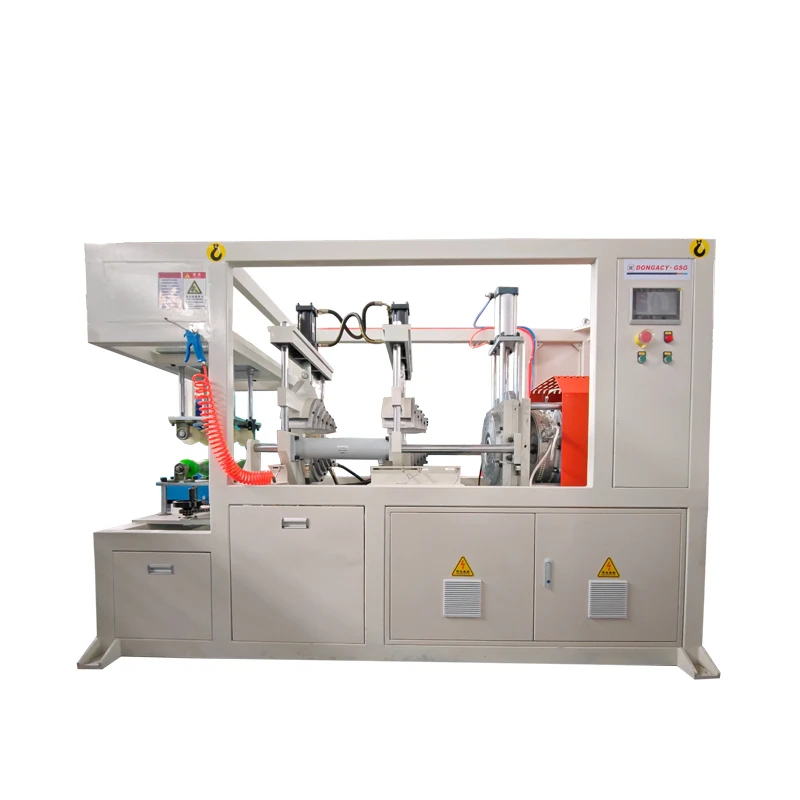

4. Intelligent Sealing Machine

The full-intelligent automatic sealing machine eliminates the need for on-line guards, offering automatic tube unloading and a reliable sealing effect. This feature reduces labor costs and improves production efficiency.

Science Popularization: Understanding the Technology

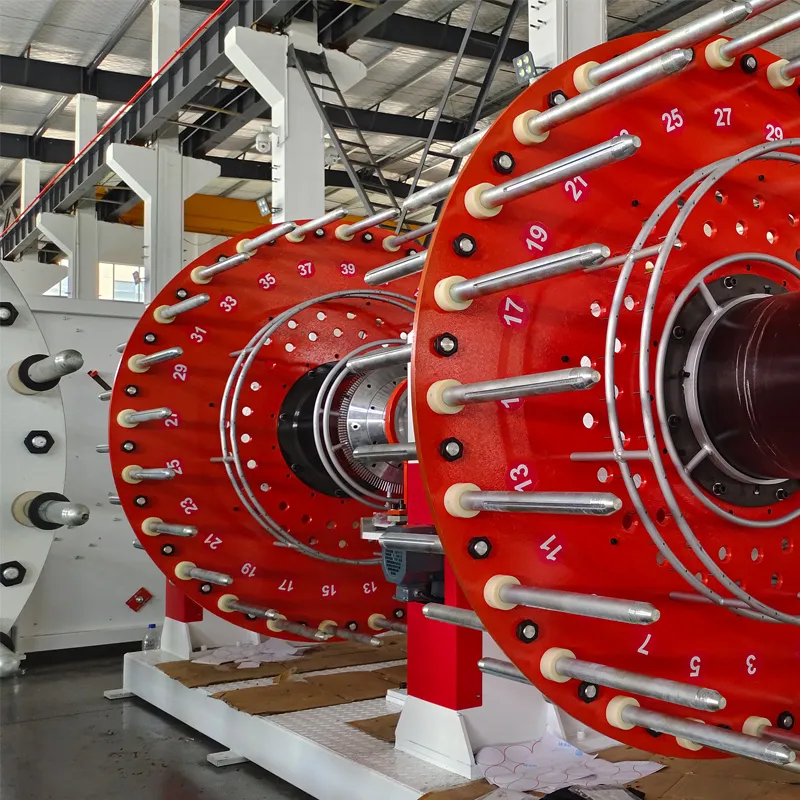

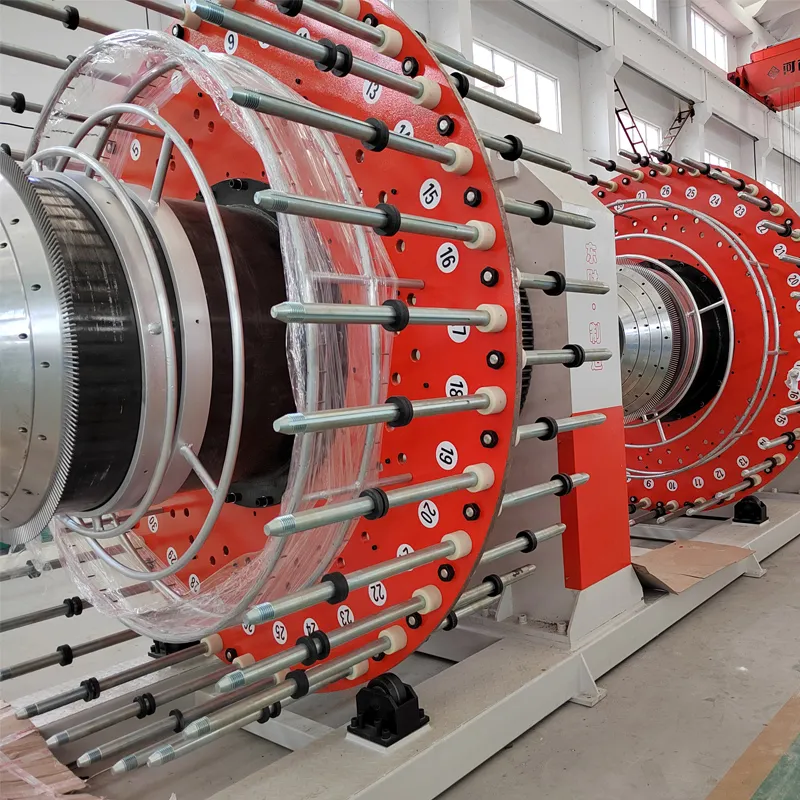

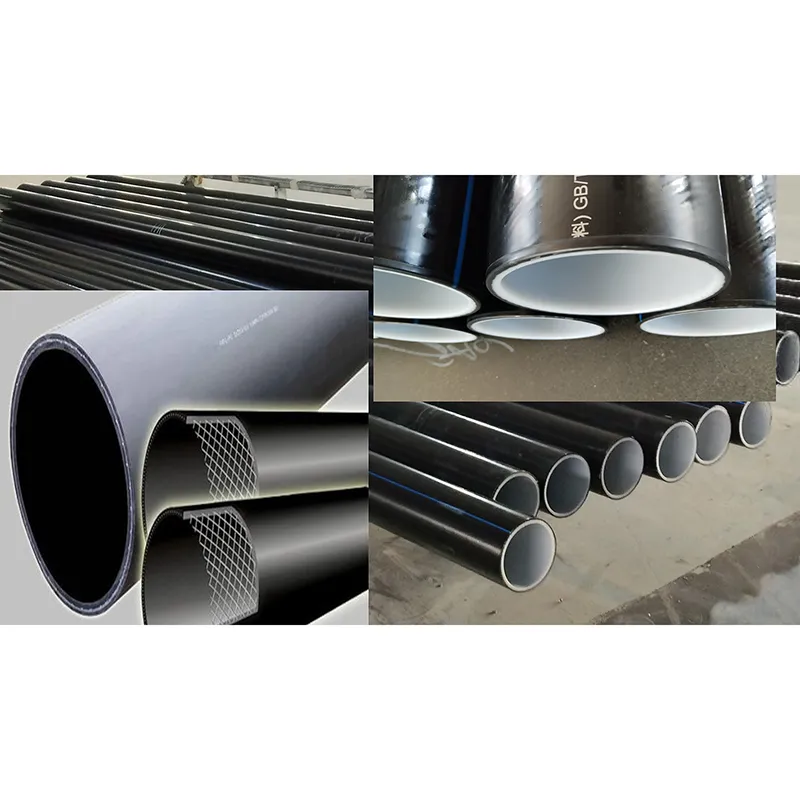

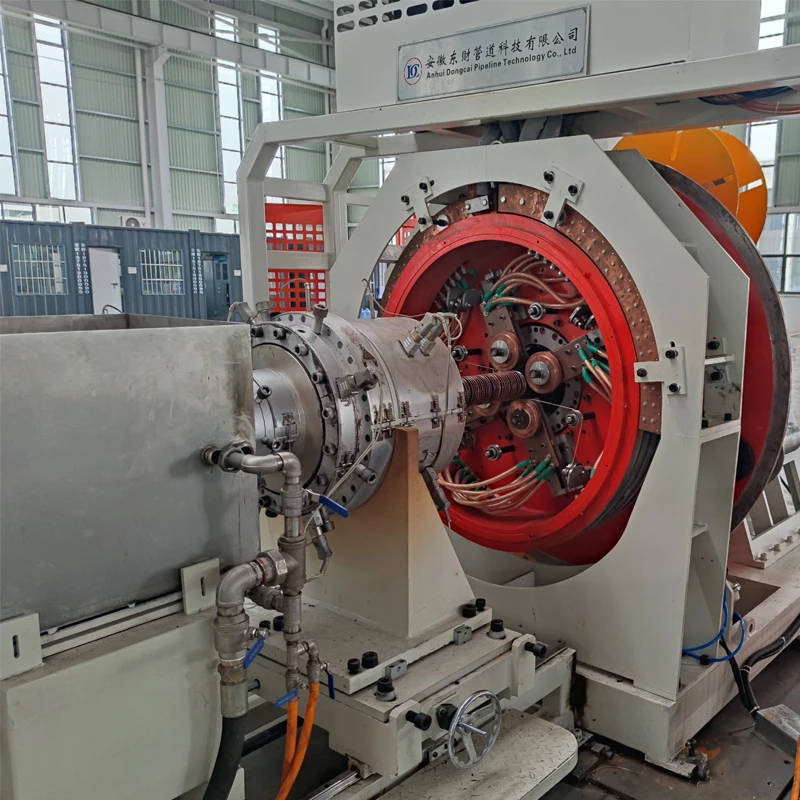

Polyethylene composite pipes with steel wire mesh skeletons are a modern innovation in pipe technology. These pipes use a mesh skeleton formed by high-strength steel wire spirally wound left and right as reinforcement. The matrix is high-density polyethylene (HDPE), and high-performance HDPE modified adhesive resin is used to bond the steel wire skeleton with the inner and outer HDPE layers. This combination results in a material that is both strong and flexible, suitable for a wide range of applications.

Material and Structural Characteristics

The steel wire mesh composite pipe is composed of high-strength steel wire and thermoplastic polyethylene. The steel wire wound mesh significantly enhances the pipe's strength, while the HDPE matrix provides corrosion resistance and flexibility. The use of high-performance HDPE modified bonding resin ensures a strong composite effect, creating a seamless bond between the steel skeleton and the polyethylene layers.

Performance Advantages

This composite pipe overcomes the limitations of traditional steel and plastic pipes while retaining their advantages. Key benefits include:

• Corrosion resistance and no scaling
• Smooth surface and low resistance
• Heat preservation and no wax deposition
• Wear resistance and lightweight

Additionally, the pipe's strength increases with rising temperature, and its degree of reduction is lower compared to pure plastic pipes. Rapid cracking is prevented, especially in large-diameter pipelines, ensuring long-term reliability.

Production Technology and Flexibility

The production line employs advanced production technology to ensure stable and reliable product quality. By adjusting parameters such as steel wire diameter, mesh spacing, plastic layer thickness, and plastic type, the structure and performance of the product can be tailored to meet specific requirements for pressure resistance, temperature resistance, and corrosion resistance.

Installation and Maintenance

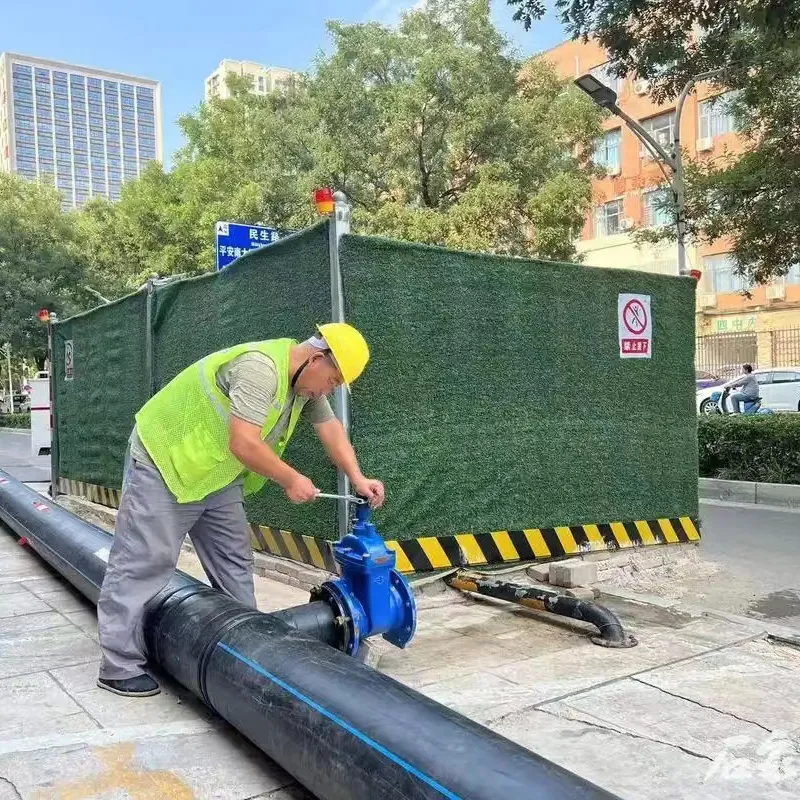

The steel wire mesh composite pipe is ideal for high-pressure transportation environments, such as conveying liquids and gases. Its lightweight design facilitates easy installation, reducing construction costs. The electric welding joint ensures a mature and reliable connection, minimizing the risk of leakage.

Technical Specifications

Model	Pipe Diameter	Production Speed	Power Consumption (KW)	Installed Power (KW)	Dimensions (L x W x H)
DCS-160	50-160 mm	2.4 m/min	110	385	73 x 4.7 x 3 m
DCS-315	110-315 mm	2.4 m/min	170	545	75 x 5 x 4 m
DCS-630	315-630 mm	1.2 m/min	260	855	76 x 6 x 4 m
DCS-800	500-800 mm	1.0 m/min	360	1150	80 x 6 x 4 m
DCS-1000	710-1000 mm	0.6 m/min	350	1150	86 x 7 x 4 m
DCS-1200	800-1200 mm	0.6 m/min	460	1400	100 x 7 x 4.7 m

Company Background

Anhui Dongchai Machinery Technology Co., Ltd. (安徽东财机械科技有限公司) is a leading manufacturer of industrial machinery and equipment. With a focus on innovation and quality, the company specializes in the design and production of advanced composite pipe systems. Their products are widely used in municipal engineering, industrial projects, construction, and sanitation pipelines. The company's website provides detailed information about their offerings and services.

Applications

The production line's composite pipes are suitable for a variety of applications, including:

• Drainage and ventilation systems
• Lighting and petroleum pipelines
• Sanitary and centralized water supply systems
• Underground cable protection and heating systems

These pipes are widely used in municipal engineering, industrial engineering, and construction engineering, offering a reliable and cost-effective solution for high-pressure environments.

Conclusion

The High-Speed Steel Wire Mesh Skeleton Reinforced Polyethylene Composite Pipe Production Line is a testament to modern engineering and manufacturing excellence. With its advanced technology, high-performance materials, and versatile applications, it meets the demands of today's industrial and municipal infrastructure. For more information, visit the product page or company website.
